Description
Architectural Wall Panels
The Kingspan Architectural Wall Panels are a secret-Fix wall panel system that offers complete freedom of design for architects, at an affordable cost and without compromising on performance and durability. The range of composite architectural wall panels can be used for horizontal and vertical applications.

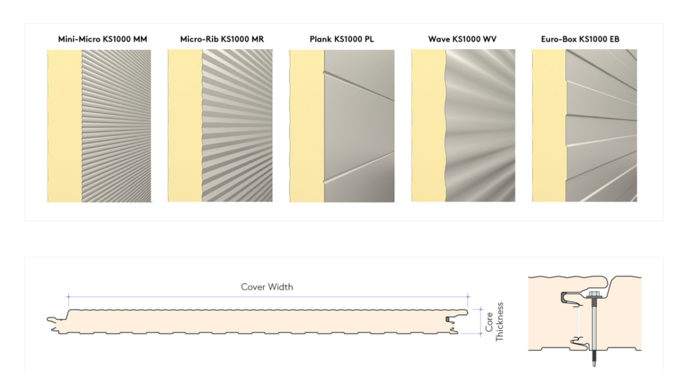

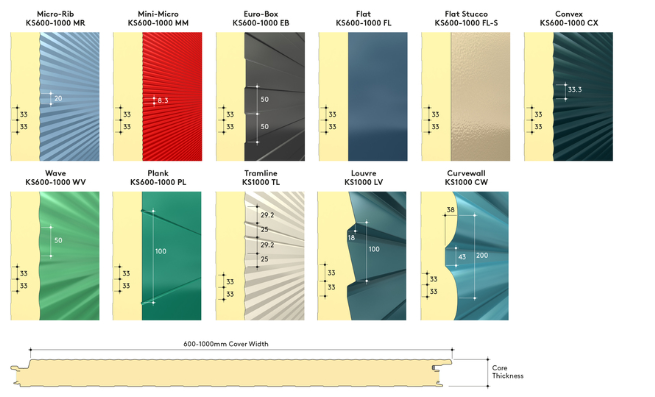

Profiles: Curvewall, Convex, Euro-Box, Flat, Flat-Stucco, Louvre, Mini-Micro, Micro-Rib, Plank, Tramline, Wave
Fixing detail: Secret-fix
Metal type: Steel
Application: Suitable for vertical or horizontal application
Lengths: From 1.8m to 17m
Cover width: 600mm – 1000mm
Spanning Capability: Longspan – upto 8.2m, frame to frame
Panel Codes-KS1000MR, KS1000MM, KS1000FL, KS1000PL, KS1000WV, KS1000EB, KS1000FL-S, KS1000LV
Downloads
Architectural Wall Panel_Installation Guide Horizontal_11.17_UK_EN
